Circular Chart Recorders

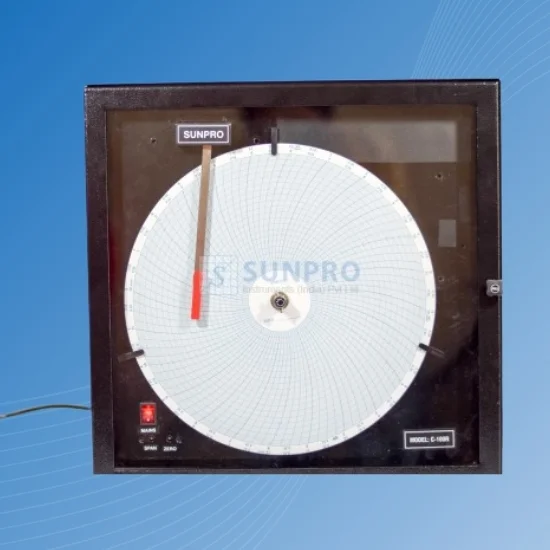

CCR – MODEL : C-100R
Potentiometric Circular Chart Recorders
The C-100R is a high-precision circular Circular Chart Recorders Manufacturer in India designed and manufactured by Sunpro Instruments (I) Pvt. Ltd. With advanced features and rugged construction, it ensures reliable recording of process parameters in a wide range of industrial applications. Built to meet international standards, this recorder is known for its accuracy, user-selectable input range, and robust performance.
Specifications
- Model: C-100R
- Input Signals: RTD, Thermocouples (K, J, R, S, T), 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: 270 mm
- Number of Pens: One
- Accuracy: ±0.5% of Full Scale Deflection
- Display: Not Available
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out Dimensions: 344 mm x 344 mm x 150 mm

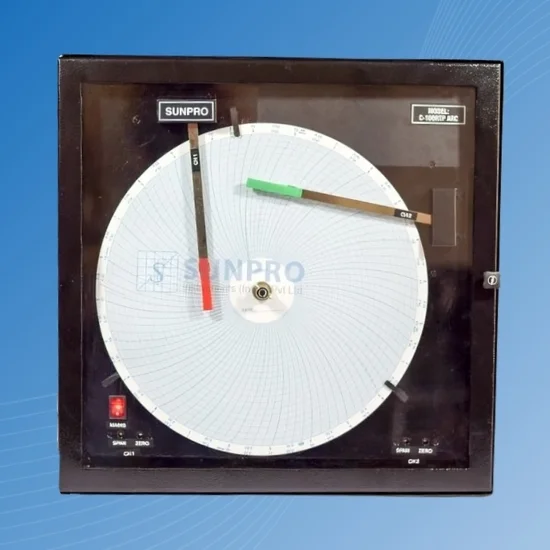

CCR – MODEL : C-100RTP
Potentiometric Circular Chart Recorder
The C-100RTP Circular Chart Recorders Manufacturer in India by Sunpro Instruments (I) Pvt. Ltd. is engineered for precision and reliability in recording multiple process variables. Designed with advanced technology and built to international standards, this 2-pen potentiometric recorder offers user-selectable input ranges and chart speeds, making it suitable for various industrial applications. Its durable construction and compact design ensure long-lasting performance in demanding environments.
Specifications
- Model: C-100RTP Input Signals: RTD, Thermocouples (K, J, R, S, T), 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: 270 mm
- Number of Pens: Two
- Accuracy: ±0.5% of Full Scale Deflection
- Display: Not Available
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out Dimensions: 344 mm x 344 mm x 150 mm

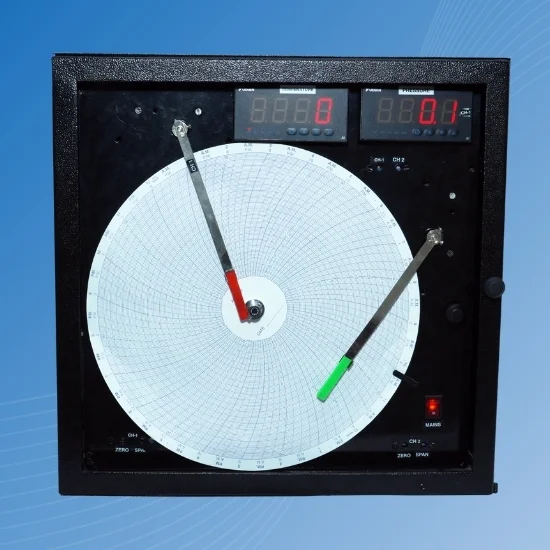

CCR – MODEL : C-100RTPD
Potentiometric Circular Chart Recorder with Display
The C-100RTPD model from Sunpro Instruments is a high-performance Potentiometric Circular Chart Recorders Manufacturer in Pune featuring dual-pen recording and a built-in digital display. Engineered to meet international quality standards, this recorder ensures precise data logging across a variety of industrial applications. Its compact, robust design and user-friendly operation make it ideal for accurate process monitoring and control.
Key Features
- Model: C-100RTPD
- Input Signal: RTD, Thermocouples (K, J, R, S, T), 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: 270 mm
- Number of Pens: Two
- Accuracy: ±0.5% of Full Scale Deflection
- Display: 3½ Digit Digital Display
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out: 344 mm x 344 mm x 150 mm

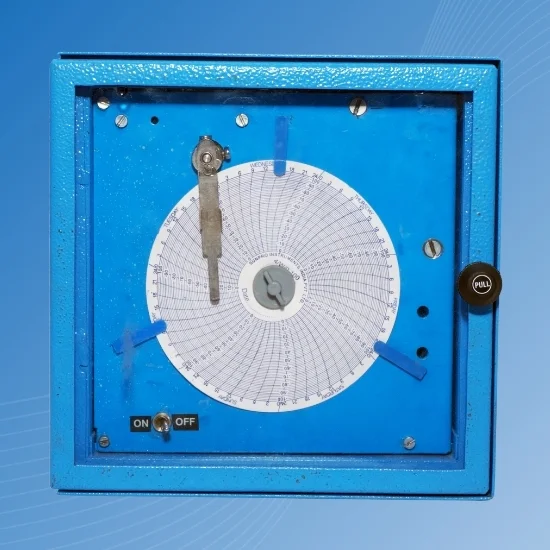

CCR – MODEL : C-40R
Potentiometric Circular Chart Recorders
The C-40R Circular Chart Recorder from Sunpro Instruments is a compact and reliable solution for accurate data recording. Designed using advanced technology and built to meet international industrial standards, this recorder is ideal for applications requiring precision and durability. Its robust design, combined with ease of installation and maintenance, makes it a preferred choice across industries.
Key Features
- Model: C-40R
- Input Signal: RTD, Thermocouples (K, J, R, S, T), 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: Not Specified
- Number of Pens: One
- Accuracy: ±0.5% of Full-Scale Deflection
- Display: Not Available
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out: 184 x 184 x 120 mm / 344 x 344 x 150 mm

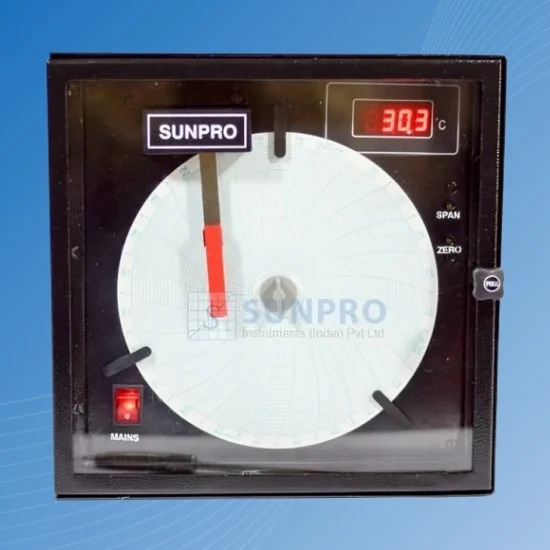

CCR – MODEL : C-60-RD
Potentiometric Circular Chart Recorder
The C-60-RD Circular Chart Recorder is a precision instrument designed for accurate and continuous recording of process parameters. Developed using advanced technology and in compliance with international standards, this model is ideal for monitoring critical industrial processes. It features a compact design, robust build, and a digital display for easy readings.
Key Features
- Model: C-60-RD
- Input Signal: RTD, 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC, Thermocouples (K, J, R, S, T)
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: 154 mm
- Number of Pens: One
- Accuracy: ±0.5% of Full-Scale Deflection
- Display: 3½ Digit Digital Display
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out: 184 x 184 x 120 mm

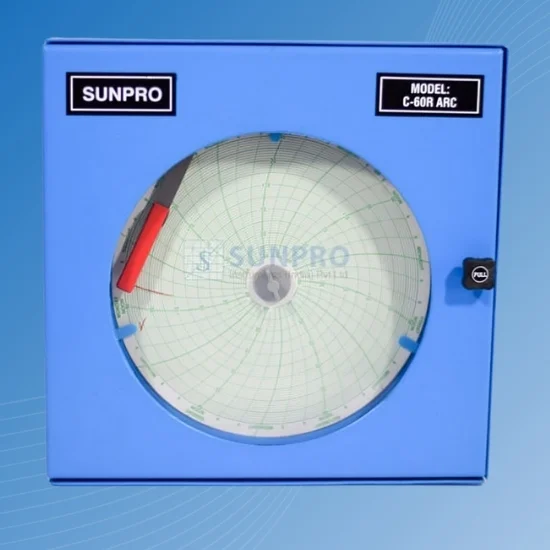

CCR – MODEL : C-60R
Potentiometric Circular Chart Recorders
The C-60-R is a high-quality potentiometric circular chart recorder designed for precise and continuous recording of process parameters. Built with advanced technology and adhering to international standards, this recorder is known for its durability, compact design, and reliable performance. It is ideal for industrial applications requiring accurate data logging without a digital display.
Technical Specifications
- Model: C-60-R
- Input Signal: RTD, 4–20 mA, 0–20 mA, 0–1 VDC, 0–5 VDC, Thermocouples (K, J, R, S, T)
- Range: Selectable
- Chart Speed: Selectable – 12 / 24 / 48 / 168 Hours per Revolution
- Chart Diameter: 270 mm
- Number of Pens: One
- Accuracy: ±0.5% of Full-Scale Deflection
- Display: Not Available
- Power Supply: 240 VAC / 50 Hz
- Panel Cut-Out: 184 x 184 x 120 mm
