Our Products:
Strip Chart Recorders

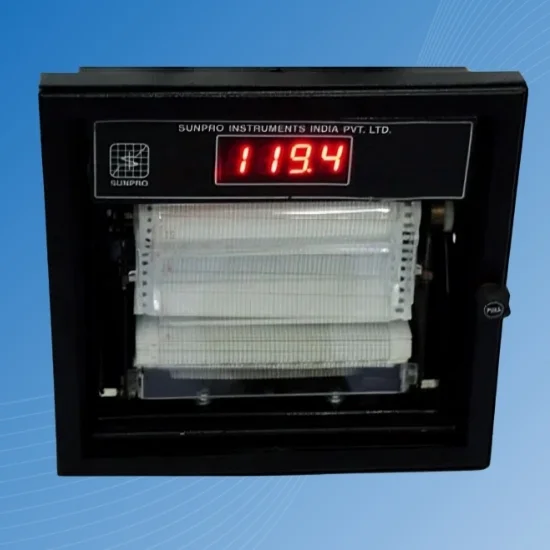

SCR-MODEL : S-100 RD
Strip Chart Recorder with Digital Display
The S-100 RD Strip Chart Recorder from Sunpro Instruments (I) Pvt. Ltd. is a robust and reliable potentiometric recording device designed for precise data logging in industrial applications. Built using advanced technology and manufactured under stringent quality control, this recorder offers both chart-based data logging and a clear digital display, combining traditional recording with modern convenience.
Key Features
- 100mm chart writing width
- Supports RTD, TC (K, J, R, S, T), 4–20mA, 0–5V, 0–1V inputs
- Accuracy: ±1.5% F.S.D.
- Selectable chart speeds: 12 / 24 / 48 / 168 HRS/REV
- 3½ digit digital display
- Power consumption: 24 VA
- Optional RS-232 / RS-485 Modbus port
- Disposable fiber-tip pen (Red/Green)
- Wall or panel mounting
- Powder-coated MS enclosure
- Operating range: 0–50°C, up to 80% RH

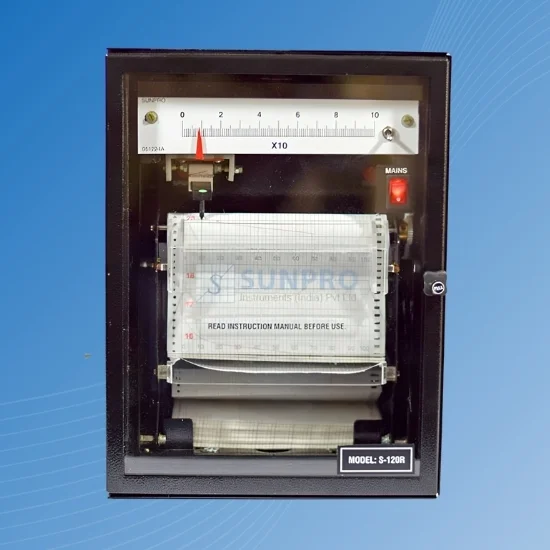

SCR-MODEL : S-120 R
trip Chart Recorder (Without Display)
Backed by extensive industry expertise, Sunpro offers a high-quality range of Potentiometric Strip Chart Recorders without display. Designed in accordance with international standards, this model is known for its durability, precision, and compact build. Manufactured using advanced technology, it delivers reliable performance in various industrial applications.
Key Features
- Input Types: RTD, Thermocouples (K, J, R, S, T), 4–20mA, 0–20mA, 0–1VDC, 0–5VDC
- Accuracy: ±1.5% of Full-Scale Deflection
- Selectable Ranges: User-configurable
- Chart Speeds: 12 / 24 / 48 / 168 hours per revolution
- Chart Speed Variation: ±2% of 50 Hz
- Power Consumption: 24 VA
- Operating Conditions: 0 to 50°C, up to 80% RH (non-condensing)
- Recording Pen: Disposable fiber-tip pen (Red/Green)
- Communication (Optional): RS-232 / RS-485 Modbus Port
- Mounting: Wall or panel mount
- Construction: MS enclosure with powder coating

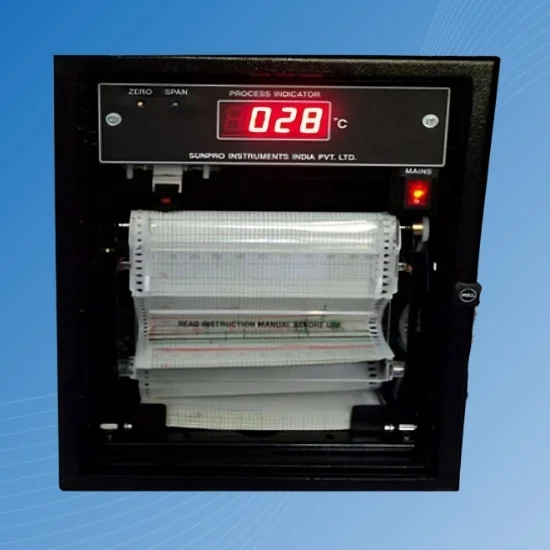

SCR-MODEL : S-120 RD
Strip Chart Recorder with Display
With years of industrial expertise, Sunpro Instruments (I) Pvt. Ltd. presents a premium-quality Potentiometric Strip Chart Recorder with Display. Designed to meet global standards, this recorder is manufactured using advanced technology and stringent quality checks. It is valued for its durability, compact design, and dependable performance across various industrial environments.
Key Features
- Input Signals: RTD, Thermocouples (K, J, R, S, T), 4–20mA, 0–20mA, 0–1VDC, 0–5VDC
- Accuracy: ±1.5% of Full-Scale Deflection
- Range: Selectable
- Display: 3½ Digit Digital Display
- Chart Speed Options: 12 / 24 / 48 / 168 hours per revolution
- Chart Speed Accuracy: ±2% of 50 Hz
- Power Consumption: 24 VA
- Operating Conditions: 0°C to 50°C | Up to 80% RH (non-condensing)
- Recording Pen: Disposable Fiber Tip (Red/Green)
- Communication (Optional): RS-232 / RS-485 Modbus Port
- Mounting Type: Wall or Panel Mount
- Construction Material: Mild Steel (MS) with durable powder coating
SCR-MODEL : S-120 RM
6-Point Strip Chart Recorder
Sunpro Instruments (I) Pvt. Ltd. brings you a high-performance 6-point Potentiometric Strip Chart Recorder, ideal for multi-channel data recording applications. Built with industrial-grade precision and designed to international standards, this model ensures reliable performance, durability, and user-friendly operation. Each unit is quality-tested and engineered for consistent accuracy in demanding environments.
Key Features
- Number of Channels: 6
- Input Signals: RTD, Thermocouples (K, J, R, S, T), 4–20mA, 0–20mA, 0–1VDC, 0–5VDC
- Accuracy: ±1.5% of Full-Scale Deflection
- Range: Selectable
- Display (Optional): 3½ Digit Digital Display
- Chart Speed Options: 12 / 24 / 48 / 168 hours per revolution
- Chart Speed Accuracy: ±2% of 50 Hz
- Recording Pens: 6-Color Disposable Fiber Tip
- Power Consumption: 24 VA
- Operating Conditions: 0°C to 50°C | Up to 80% RH (non-condensing)
- Communication (Optional): RS-232 / RS-485 Modbus Port
- Mounting Type: Wall or Panel Mount
- Construction Material: Mild Steel (MS) with high-quality powder coating

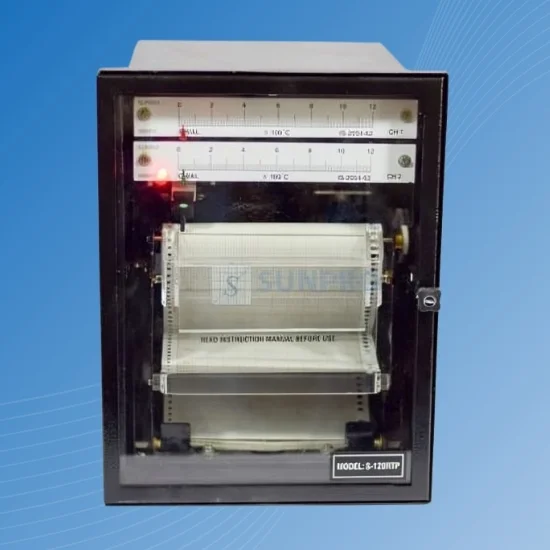

SCR – Model: S-120 RTP
Potentiometric Strip Chart Recorder with Printer Output
The S-120 RTP Strip Chart Recorder from Sunpro Instruments (I) Pvt. Ltd. is a precision recording device equipped with printer output functionality. Designed for accurate and long-term data logging, it supports multiple industrial input signals and delivers reliable performance in demanding environments. Its robust build, user-friendly interface, and optional Modbus communication make it suitable for various process monitoring applications.
Key Features
- Input Types: RTD, Thermocouples (K, J, R, S, T), 4–20mA, 0–20mA, 0–1VDC, 0–5VDC
- Accuracy: ±1.5% of Full-Scale Deflection
- Range: Selectable
- Chart Speed Options: 12 / 24 / 48 / 168 hours per revolution
- Printer Output: Integrated printer port for data output
- Chart Speed Tolerance: ±2% of 50 Hz
- Power Consumption: 24 VA
- Operating Range: 0°C to 50°C | Up to 80% RH
- Disposable Pen Type: Red / Green Fiber Tip
- Communication (Optional): RS-232 / RS-485 Modbus Port
- Mounting: Wall or Panel Mountable
