Sunpro 8″ Touch Screen Datalogger

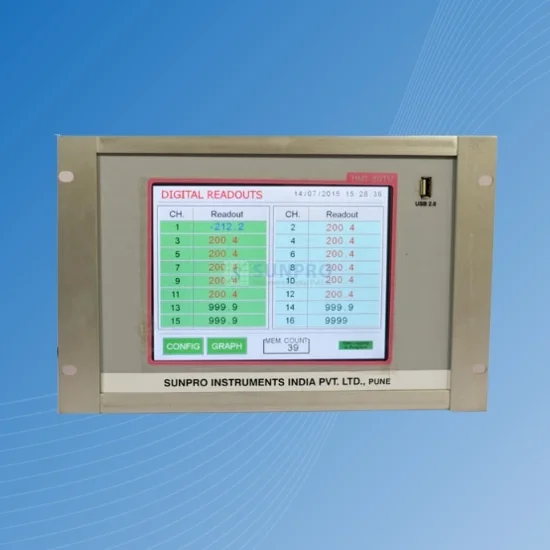

Sunpro Make 8″ Paperless Datalogger/Recorder
Reliable. Intelligent. Touch-enabled Industrial Data Recording
The Sunpro HMI-080 is a robust 8-inch paperless datalogger designed for high-precision data acquisition and real-time monitoring in industrial environments. It features a high-resolution 8” TFT color touch screen with intuitive navigation using either finger or stylus, making data entry and system interaction simple and efficient.
Key Features
- Capacitive Touchscreen: Intuitive and durable interface
- Universal Input Channels: Supports 8, 16, 24, 32, 48, or 60 channels
- Inputs: DC Voltage/Current, Thermocouples (T/C), RTDs (T/Cs must be ungrounded)
- High-Speed Performance: 100ms scan and memory cycle for all channels
- Flexible Display Modes: Multiple user-selectable visualizations
- Advanced Communication:
Ethernet TCP/IP
Isolated RS232 / RS485
USB 2.0 for data transfer - Powerful Software Support: Compatible with DAS PC Software Suite for detailed graphing, analysis, and archiving
Specifications
Mounting: Panel flush-mount (standard)
Enclosure Material: Aluminum
Display: 8” Color TFT LCD (640 × 480 pixels)
Power Supply: 230V AC, 50 Hz
Power Consumption: 50 Watts
Input Types:
Analog: 4–20mA, 0–20mA, 0–10VDC, 0–5VDC, 0–1VDC
RTDs
Thermocouples: Types J, K, R, S, N, W, L, U, B
Analog Input Resolution: 16-bit
Memory: Stores up to 25,000 readings per channel
Data Retrieval: USB 2.0 compatible
Optional Interface: Parallel printer port
Operating Conditions:
Temperature: 0°C to 50°C
Humidity: Up to 80% RH (non-condensing)
Touch Interface: Capacitive touchscreen
